For high-end dining rooms, busy bars, and classic diners, serving dependable drinks starts with the right beverage equipment. A Bar Soft Drink Dispenser or Bar Soda Dispenser helps improve service, cut down guest wait times, and keep staff focused on customers. Instead of constantly chasing bottles and cans, staff can pour drinks quickly from a centralized system.

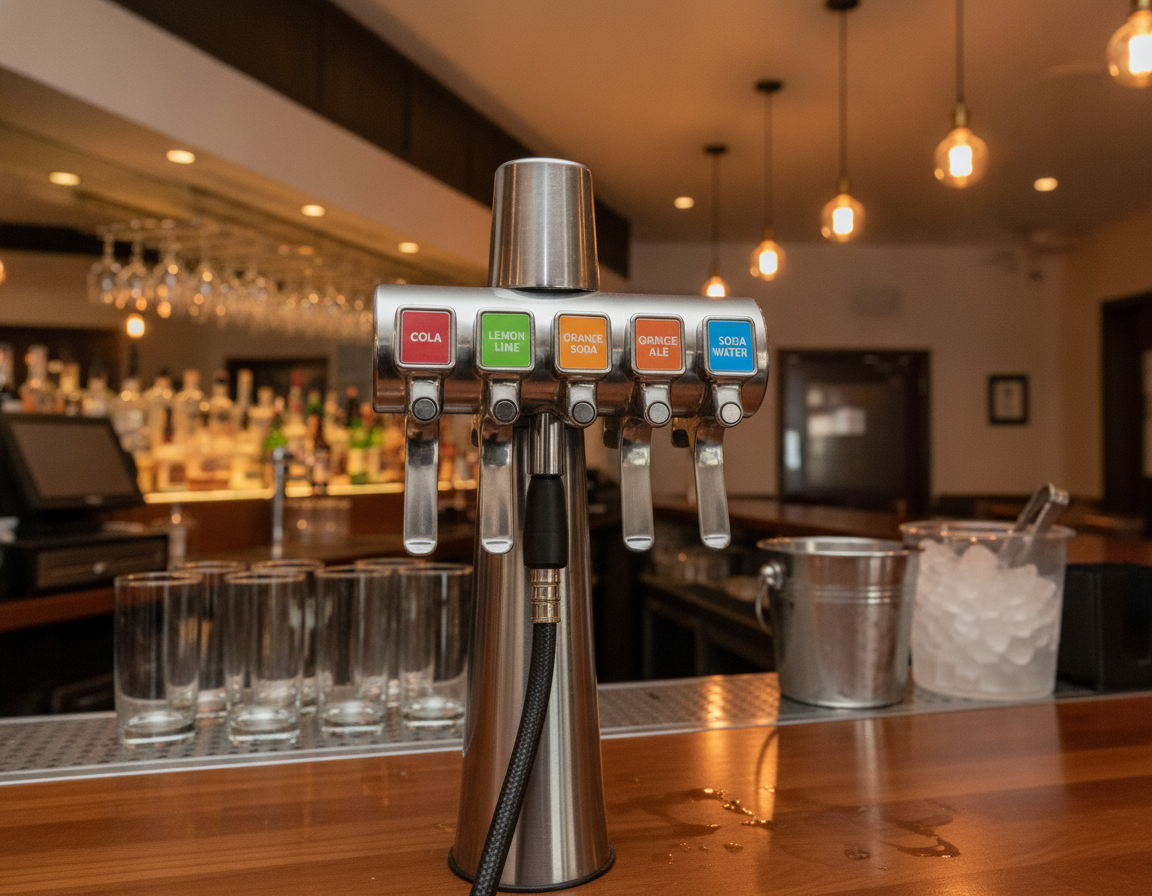

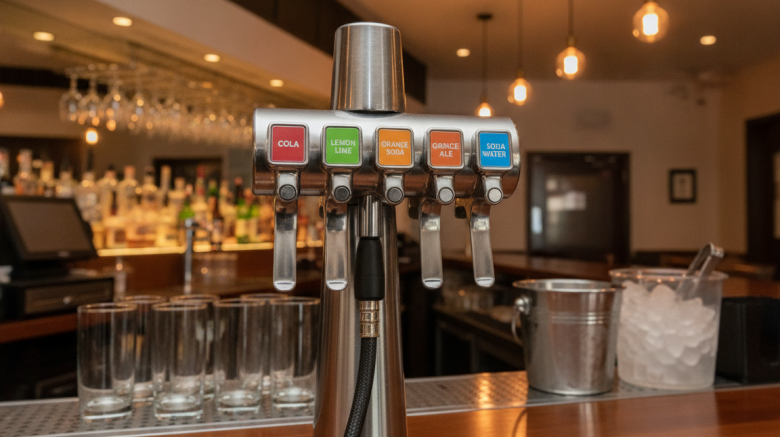

Soda Gun Machine
Combining a Bar Soda Machine with bag-in-box BIB syrups provides significant cost and space benefits. Five-gallon BIB containers feed through tubing into a Soda Dispenser For Bar or Bar Gun Dispenser. As syrup is dispensed, the bag compresses, reducing waste and ensuring every last drop is used.
Utilizing a Soda Gun For Bar and compact dispensers also lowers the cost per ounce compared to canned or bottled drinks. This setup usually means less restocking and less packaging waste. It also protects storage space and reduces clutter in cramped kitchens, service stations, and busy bar areas.
This guide will explain mounting styles, cooling and carbonation options, syrup compatibility, maintenance and sanitation, troubleshooting, and cost and installation basics. It also highlights reliable suppliers such as Installation Parts Supply for sourcing parts and building an efficient dispenser setup.
Why Invest In A Soda Dispenser For Your Bar Or Restaurant
Introducing a Soda Gun System can significantly enhance service efficiency. It removes the constant need for staff to grab bottles or cans, which saves valuable time. When the Bar Soda Gun System is mounted behind the bar, bartenders can serve more drinks with fewer movements.
For high-traffic venues, a Soda Gun Bar setup is invaluable. It helps keep counters uncluttered and lines moving swiftly. Proper training on each Bar Dispenser Gun supports consistent drink quality and portion control. That can support faster service and shorter waits during peak periods.
Changing to bag-in-box syrup can reduce costs compared with buying bottled sodas. A single BIB can hold up to five gallons, reducing the cost per ounce and the frequency of purchases. When BIBs are paired with a Soda Gun System and a well-organized rack, replacements become cleaner and downtime is reduced.
Using BIB syrups and CO2 cylinders can also reduce packaging waste and storage demands. A Bar Soda Gun System makes possible compact storage for syrup boxes, cylinders, and related parts. Full-squeeze racks and gravity-feed systems help maximize syrup extraction and reduce waste.
Opting for the right Bar Dispenser Gun and completing the Soda Gun Setup with the correct components increases long-term efficiency. This results in a cleaner workspace, fewer deliveries, and better alignment with sustainability goals for restaurants and bars.
Understanding Bar Soft Drink Dispenser
Choosing the right equipment depends on understanding how it works. A Bar Soft Drink Dispenser blends carbonated water with flavored syrup, ensuring consistent drinks. It consists of dispensing valves, syrup lines, a CO2 supply, and a carbonator. A cooling system, like an ice bank or direct refrigeration, is also essential.
Syrup delivery is managed with bag-in-box containers connected via tubing. The nozzle style must match the BIB connector, and adapters are sometimes required. Valves may be push-button or lever style, while lighting, labels, and graphics can upgrade the dispenser’s appearance.
Best uses for each dispenser type
A Soda Fountain is a large unit with multiple valves and integrated cooling. It works well for busy serving stations. By contrast, a Soda Gun is a handheld dispenser that is practical for bartenders. The Soda Siphon, once used to carbonate water, is now mostly historical.
Installation needs vary depending on the dispenser type. A Soda Fountain calls for countertop or cabinet space and proper cooling. A Soda Gun requires organized tubing runs and easy access for cleaning. Although the Soda Siphon is compact, it lacks the volume, control, and efficiency of modern dispensing systems.
Different foodservice venues use dispenser styles in different ways. Bars often prefer Soda Guns for quick drink preparation. Restaurants and fast-food outlets choose Soda Fountains for self-serve lanes. Diners and convenience stores choose countertop units with ice bins for efficiency. Food trucks and mobile vendors often choose compact portable dispensers because they are flexible.
Soda Machine Types And Mounting Styles
Choosing the right soda equipment is essential to smooth service and a great guest experience. Models differ by size, installation needs, and mobility. Below, the common options are compared with practical guidance for choosing the best setup.
Countertop Models: Portable Options And Best Uses
Countertop Soda Machines are placed on existing counters and typically plug in with minimal setup. They work well for small cafes, food trucks, catering events, and pop-up service. Their easy movement makes them especially practical for temporary or flexible operations.
These machines are straightforward to clean and move around during busy times. They can also be convenient for home use, events, or seasonal beverage programs.
Drop-In Soda Machines: Integrated Look For Premium Venues
Drop-in Soda Machines call for cutting the counter and securing the dispenser. They deliver a flush, professional look, perfect for fine dining and high-volume venues.
They often come with under-counter racks for bag-in-box syrup and external carbonators. For a seamless service station and large ice capacity, a drop-in is the best choice.
Choosing A Bar Gun Or Built-In Fountain
Bar Gun Soda systems work well when space is limited or bartenders need a handheld dispenser for mixed drinks. They deliver multiple beverages from one point, speeding up craft cocktail service.
Built-in fountains are better for self-serve areas, front-of-house drink lines, or high-volume stations where many guests pour drinks. Choose a fountain for multiple valves, flavor shots, and a polished fixture that blends with the bar.
| Comparison Point | Countertop Soda Machine | Drop-In Dispenser | Bar Gun Soda |
|---|---|---|---|
| Installation | Fast setup without cutting counters | Built-in installation with counter modification | Mounted holster or wall bracket, simple hook-up |
| Portability | High — easy to move | Low — permanent fixture | Moderate mobility within hose reach |
| Ideal applications | Events, mobile vendors, and compact cafes | Premium bars, restaurants, and permanent stations | Cocktail bars, mixed drinks, and cramped stations |
| Home-use compatibility | Useful for home or hobby beverage stations | Usually uncommon for residential use | Soda Gun System For Home setups are available for enthusiasts |
| Service needs | Easy access for cleaning and updates | Requires service access below the counter | Daily wipe-downs and tubing checks required |
Soda System Features: Valves, Ice, Carbonation, And Cooling
Choosing the right hardware is important for drink quality, speed, and maintenance. It is important to understand how Dispensing Valves, cooling style, and carbonation work together. Small differences in a Soda Gun Nozzle or Cold Plate For Soda Gun can influence daily performance, cleaning needs, and reliability.
Dispensing valves are generally available in two common styles. Push-button valves provide consistent portions and are useful for self-serve stations. Lever valves provide more flow control and are often easier for bartenders to clean and manage.
When deciding how many valves you need, start with the beverage menu. More valves enable multiple sodas and flavor shots. It is also important to match the nozzle style to the syrup and supply system. Twist-lock and o-ring Soda Gun Nozzle designs use different Soda Gun Parts for cleaning, repair, and replacement.
Ice setup plays an important role in both cooling performance and service flow. Top-mounted ice bins provide quick access and can add passive cooling for beverage lines. Drop-in ice bins, located under the counter, reduce contamination risk and keep staff supply handy.
Keep ice bins covered or closed whenever they are not being used. Use dedicated scoops, and do not store bottles, tools, or other items in the ice bin if you want to avoid warm or flat drinks. An Ice Bank can extend cooling capacity, but it requires steady ice supply and checks for bridging.
Carbonation setup affects system capacity, drink quality, and maintenance needs. Internal Carbonator units support compact footprints and work well for moderate volume. External Carbonator systems handle higher demand and can make repairs simpler when parts need service.
Set CO2 pressure carefully and follow tank maintenance schedules. Proper regulator settings support consistent fizz and reduce complaints about flat beverages.
Cooling choices include ice bank cooling, cold plate cooling, and direct refrigeration. Ice bank cooling is efficient and relatively simple to service. Cold plate cooling chills liquids as they pass through the plate, making a Cold Plate For Soda Gun practical for busy bars. Direct refrigeration uses compressor-based cooling for more precise temperature control in larger systems.
| System Feature | Ideal For | Advantages | Drawbacks |
|---|---|---|---|
| Button-style dispensing valves | Guest-facing pour stations | Consistent portions, quick service, reduced waste | Less manual control for mixology |
| Lever Dispensing Valves | Bar service | Manual control and convenient sanitation | Consistency depends on operator training |
| Countertop ice bin | High-access ice stations | Added passive cooling, visible supply | Requires strict scoop and lid discipline |
| Drop-in Ice Bin | Back-of-house, staff use | Hygienic, out of customer reach | Requires cabinet or counter space |
| Ice Bank Cooling | Efficient beverage cooling | Simple service and steady chilling | Needs ice monitoring and management |
| Cold Plate For Soda Gun | High-volume bars | Fast chilling and compact footprint | Costs more upfront and needs correct fittings |
| Direct refrigerated cooling | Large systems, varied temps | Precise control, reliable | More complex service requirements |
| Integrated carbonation unit | Small-footprint installations | Saves space and simplifies layout | Lower peak demand capacity |
| Separate carbonator | High-demand beverage programs | Better for peak demand and repairs | Needs separate footprint |
| Soda Gun Nozzle & Soda Gun Parts | Soda gun systems of all types | Modular replacement, varied styles | Must be matched correctly to avoid leaks |
Syrup System Compatibility And Setup Best Practices
Choosing the correct syrup system is important for drink quality, service speed, and operating efficiency. Bag-in-Box Syrup delivers large servings with less waste and a wide range of flavors. This includes everything from cola to iced tea and unique craft blends. Proper installation and calibration are necessary for consistent flavor and lower waste during peak service.
Adopting a structured Soda Gun Setup is important to avoid issues like leaks and off-tastes. Start with the correct branded fittings, because Coca-Cola® and similar systems may require specific nozzles or connectors. When using third-party syrups, a BIB Adapter may be needed to make the syrup package compatible with the existing connector.
Bag-In-Box Advantages And Flavor Options
Bag-in-Box Syrup comes in five-gallon bags, fitting standard racks. This format lowers packaging costs and storage needs while providing a variety of flavors. Incorporating popular choices like cola and lemonade, along with specialty concentrates, can improve add-on sales.
Connecting Syrup Lines: Nozzle Fit And Adapter Needs
Confirm Syrup Compatibility before buying syrups, connectors, or replacement parts. A mismatched Soda Gun Nozzle can cause drips, weak flow, leaks, or inconsistent dispensing. If syrup brands or connector styles differ, a BIB Adapter may be required. Use a dedicated rack and a full installation kit for stable pressure and organized tubing runs.
Ratio Calibration And Cross-Contamination Prevention
Set water-to-syrup ratios according to manufacturer guidelines, often 5:1 but varying by brand. Test by pouring sample servings and adjust until the taste meets expectations. Regular checks are recommended to maintain consistent flavor during long shifts.
When possible, dedicate lines to single flavors to avoid cross-contamination. Flavor residues may remain inside tubing and affect future pours. If lines must be swapped, flush with water and draw a 24-oz serving to clear residues before service resumes.
| Task | Importance | Fast action |
|---|---|---|
| Verify nozzle fit | Helps prevent poor pours and syrup leaks | Match Soda Gun Nozzle to brand or add BIB Adapter |
| Install proper rack and kit | Supports steady pressure and organized tubing | Use a complete kit with clamps, hoses, and regulators |
| Adjust syrup ratio | Determines flavor strength and drink quality | Set to manufacturer ratio, taste test, and re-check weekly |
| Control flavor contamination | Protects flavor quality between products | Keep dedicated lines or flush lines and draw a test pour |
| Regular service | Supports compatibility, sanitation, and equipment life | Service regularly and change worn connectors |
Bar Soda Gun Parts, Sanitation, And Maintenance
A clean, well-serviced bar soda gun ensures fast service and consistent drinks. This section outlines major components, daily cleaning, common faults, and practical fixes. It also highlights where to find reliable Soda Gun Parts for quick repairs.
Main bar soda gun components
The main parts are a Bar Gun Nozzle, manifold, tubing, sheathing, Bar Gun Holster, and a Cold Plate For Soda Gun. Nozzles commonly use twist-lock or o-ring designs. Tubing and connectors link the gun to BIB syrup lines, water, and CO2 supply. Insulating lines from the cold plate to the manifold keeps drinks cold.
Routine cleaning and sanitation steps
Begin by washing your hands thoroughly. Remove the Bar Gun Nozzle and soak it, along with connectors, in a sanitizer like Kay-5® or a chlorine solution. Clean the holster, sheathing, and exterior surfaces. Dry parts on a clean cloth before reassembling.
Empty and sanitize the ice bin, and always use dedicated ice scoops. Refill with cubed ice. Wait 15–20 minutes and briefly activate soda water after reassembly. Taste each beverage to confirm quality before service. Avoid using the gun handle to break ice or store items in the ice bin.
Troubleshooting frequent soda gun problems
Warm or flat drinks often suggest low ice, CO2 pressure problems, water-filter issues, or damaged line insulation. If the system has not dispensed for 30 minutes, draw and discard a 24-oz soda before serving.
Off-tastes or odors may indicate missed cleaning, contaminated ice, expired filters, or liquid trapped in underground chases. Overly sweet or watered-down drinks may result from empty BIBs, incorrect regulator settings, or bad syrup ratios. Have a technician check the system if ratio problems continue.
Noisy carbonators may indicate a dry pump, low inlet water pressure, or a supply issue. Check water supply and filter cartridges. Leaks or loose nozzles often result from improper reinstall or worn seals. Identify the nozzle type and soak stubborn seals in sanitizer to loosen them.
Where to buy parts and supplies
Major beverage manufacturers like Coca-Cola® provide replacement parts and tech support for branded systems. Independent suppliers carry common spares such as valve bodies, nozzle assemblies, thermometers, sanitary drip cups, and regulators.
Installation Parts Supply can be a practical source for fittings, hoses, clamps, Cold Plate For Soda Gun units, and plumbing components. Keeping a small inventory of critical Soda Gun Parts and labeled connectors can speed up repairs and reduce downtime.
Choosing The Right System: Cost, Customization, And Installation
When choosing a soda setup, begin with a clear budget and a practical list of priorities. Commercial Bar Soda Gun System Cost depends on unit style, valve count, and whether the system uses an internal or external carbonator. Costs can also rise when advanced cooling options such as direct refrigeration or a cold plate are included. Complex drop-in installations further add to the expense.
Consider additional items that affect the Soda Gun Machine Cost. CO2 tanks, regulators, piping, adapters for specific BIB connectors, and labor for cut-in installations all contribute. Budget also for ongoing expenses such as BIB syrup, sanitizer, spare nozzles, worn fittings, and preventive maintenance for the Bar Soda Gun System.
Customization can improve guest satisfaction and help increase beverage sales. Adding flavor shots or extra valves helps staff to create signature mixes and upsell premium drinks. Visual enhancements like LED lighting, branded graphics, and interactive recipe displays also capture attention and highlight seasonal drinks.
Branded cups, straw dispensers, and dispenser wraps can create a unified beverage station appearance. Use graphics that match your hospitality brand to improve recognition and encourage repeat purchases.
Plan the installation around a complete and compatible kit. A proper setup requires a slanted BIB holding rack, pressure regulators, clamps, suitable hoses and fittings, and cold plates for bar gun setups. Ensure compatibility by including adapters for common BIB connectors to prevent leaks.
Professional installation is recommended for drop-in units and systems using external carbonators. Countertop models and many Bar Gun Dispenser setups can be assembled by trained staff or an experienced technician. Leave room for CO2 tanks and make sure staff can easily access the system for routine checks and maintenance.
When sourcing parts, choose specialists that carry fittings, cold plates, hoses, clamps, and full installation kits. Installation Parts Supply provides many of these items, saving time when matching components to a specific Soda Gun Dispenser or Bar Gun Dispenser configuration.
Keep manufacturer resources from brands such as Coca-Cola Solutions available for cleaning guides, troubleshooting charts, and service contacts. These resources can simplify start-up and minimize downtime in case of taste or flow issues with a Soda Gun System.
Final Thoughts
Selecting the right Bar Soft Drink Dispenser is important for fast service and stronger beverage margins. A properly selected Bar Soda Gun System paired with bag-in-box syrups can reduce beverage product cost. It can also reduce packaging waste and increase menu flexibility for cocktails, mixers, and nonalcoholic drinks.
Before making a purchase, review the dispensing valves, ice and cooling types, carbonator capacity, and BIB compatibility. Regular tasks like calibrating the water-to-syrup ratio, sanitation, and maintenance help maintain consistent flavor and carbonation. These steps are important for the long-term performance and life of a Soda Dispenser Gun.
Remember to budget for ongoing costs such as CO2, syrup, sanitizer, replacement nozzles, fittings, and parts. Rely on reputable suppliers and manufacturer support lines for parts and installation kits. With the right Bar Soda Dispenser and a solid maintenance plan, bars and restaurants can provide faster service, a wider drink menu, and increased profitability from their beverage offerings.
