An intermittent bonded ribbon production line is used to manufacture flexible fiber groups for contemporary, high-count cable architectures. It keeps fibers properly aligned for expedited mass fusion splicing, yet allows the fiber group to remain flexible within a compact cable core.
Compared with continuously bonded ribbons, intermittent bonded ribbons feature discrete bonding points at predetermined intervals. This strategic placement keeps the fibers in an organized sequence while the ribbon can bend and roll into circular loose tubes and other confined spaces.
Network designers use this approach when faced with constraints in duct space, splice closures, and equipment racks. A properly engineered ribbon cable facilitates dense network deployments in data centers, telecom backbones, metro networks, FTTx feeder systems, and 5G transport networks.
SZ Stranding Line Fibers in Stainless Steel Tube Fiber Ribbone Line
Key Takeaways
- An intermittently bonded ribbon line enables flexible, high-density fiber arrangements.
- Separated bond points maintain optical fiber order without creating a rigid ribbon.
- Flexible ribbon structures allow manufacturers to place more fibers inside compact circular cables.
- Stable fiber order helps accelerate mass fusion splicing.
- Ribbon cable systems support data centers, telecom backbones, and fiber access networks.
Intermittently Bonded Ribbon Production Line Overview
This ribbon production method enables the creation of fiber designs that harmonize density with practicality. This method involves placing bonds at predetermined intervals, allowing for the movement of fiber subunits between these points.
This production approach supports the incorporation of a higher number of fibers within constrained duct spaces. It also ensures the preservation of the organized ribbon structure, essential for efficient splicing and cable assembly processes.
How Does An Intermittently Bonded Optical Fiber Ribbon Work?
A flexible intermittently bonded optical ribbon connects adjacent fibers at specific intervals along its length. The segments between these bonds remain relatively free, enabling the ribbon to adopt various configurations without rigidification.
This ribbon format is commonly described as a rollable, flexible, or spider web ribbon. It differs from the conventional flat ribbon cable, which maintains a fixed profile along its entire length.
During splicing, the fibers can be arranged into a flat ribbon for mass fusion operations. In cable production, the same fibers create space-efficient bundles, optimizing space utilization within the cable.
Why High-Density Fiber Networks Need Flexible Ribbon Technology
Network designers frequently face the challenge of increasing capacity within densely populated conduits, data centers, and access routes. The flexible nature of a flat cable structure allows ribbon groups to fit into smaller cable cores, preserving fiber order.
A fiber density ratio provides a critical metric for network builders, comparing the space occupied by fibers to the total cable area. Intermittent bonding helps increase this density ratio, allowing ribbon groups to occupy available spaces within the cable.
For network installers, high-density fiber cables reduce the number of cables required for a given route. This design also supports high fiber counts without necessitating a rigid ribbon stack.

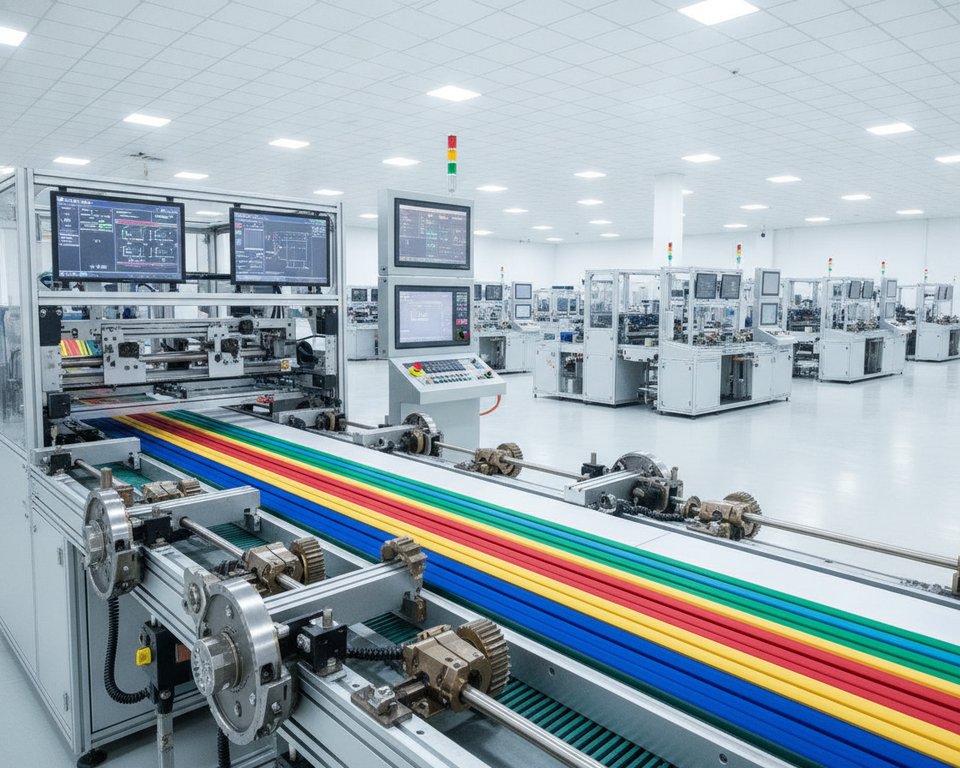

Intermittent Bonded Ribbon Production Line
| Ribbon Characteristic | Intermittently Bonded Ribbon Design | Traditional Continuous Ribbon |
|---|---|---|
| Bond pattern | Discrete bonds at predetermined intervals | Continuous bonding throughout the ribbon length |
| Fiber form between bonds | Can roll, curl, or fold for compact packing | Stays mainly flat and planar |
| Splicing configuration | Can be flattened for mass fusion splicing | Already held in a fixed flat ribbon form |
| Role in cable packing | Supports dense, flexible subunit placement | Relies on a relatively rigid ribbon stack |
| Typical cable application | Flexible flat cable and high-density fiber cable designs | Conventional fixed ribbon cable structures |
Construction And Material Requirements For Intermittent Bonded Ribbon
An intermittent bonded ribbon integrates precise fiber placement with adaptable bonding points. Its architecture facilitates dense cable configurations while allowing effortless separation during handling, routing, and splicing.
Material selection significantly influences ribbon width, peel characteristics, and durability. Each optical fiber subunit must hold its fibers securely without imparting undue stiffness to the ribbon.
Optical Fiber Counts And Subunit Arrangement
Intermittent bonded ribbons can accommodate 4, 8, 12, 24, or up to 36 fibers. The choice of fiber count is determined by cable capacity, available duct space, and the requirements of subsequent mass fusion splicing.
A 12-fiber configuration often employs six subunits, with two adjacent fibers in each subunit. The fibers within a subunit may be in contact or separated by no more than one and a half times the fiber diameter.
The inclusion of small gaps between subunits ensures ribbon flexibility. These gaps typically span from 5 to 100 micrometers, while the fibers remain aligned side by side across the ribbon width.
| Construction Element | Typical Arrangement | Process Purpose |
|---|---|---|
| Number of fibers | 4, 8, 12, 24, or up to 36 fibers | Matches cable density and splice capacity |
| Fiber subunit layout | Two neighboring fibers in each optical fiber subunit | Supports controlled separation between groups |
| Fiber spacing in a subunit | Touching or up to 1.5 fiber diameters | Supports a small and consistent subunit profile |
| Spacing between subunits | Approximately 5 to 100 micrometers | Allows greater movement and flexibility near bond points |
UV-Curable Resin With Wet-On-Wet Bonding
Subunit coatings and bonding materials frequently employ UV-curable resin systems. Wet-on-wet bonding involves applying the bond material to the uncured subunit coating, which then cures together under UV energy.
Wet-on-wet bonding produces a diffusion zone where the materials interact. For intermittent bonded ribbons, this zone can range from 2 to 50 micrometers, with 5 to 15 micrometers being the typical focused process range.
UV-curable resins can intermingle at the interface before curing. This encourages molecular entanglement between the bond and the optical fiber subunit coating, resulting in bonds that are both secure and flexible.
Main Equipment For Intermittent Bonded Ribbon Production
An optical ribbon line integrates advanced motion control with meticulous material handling. Each station ensures fibers remain aligned, clean, and stable from the initial payoff to the final winding.
The line equipment manages adjacent fiber placement, subunit coating, intermittent bonding, UV curing, cooling, inspection, and take-up. This sequential process enables manufacturers to manufacture customized flexible ribbon, preserving the integrity of the fiber order.
Fiber Payoff And Tension Control System
Payoff units deliver individual optical fibers at a consistent rate from spools. Guides, rollers, and tension sensors prevent sudden pulls, averting twist, slack, or uneven spacing.
During ribbon production, maintaining balanced fiber paths before alignment is critical. Stable tension is essential for forming flat subunits and ensuring accurate color sequence control.
Discrete Bond Applicator And Coating Die
The coating die applies a UV-curable material around groups of two or more fibers. This material defines subunits while maintaining fibers in a flat, parallel layout.
A discrete bond applicator then places a second resin between neighboring subunits at planned intervals. This spacing allows the ribbon to flex and separate when needed, a critical aspect of custom ribbon cable design.
| Line Equipment | Main Function | Production Benefit |
|---|---|---|
| Payoff tension system | Supplies fibers under controlled tension | Reduces twist and uneven fiber loading |
| Coating die | Forms coated fiber subunits | Maintains consistent subunit shape and width |
| Intermittent bond applicator | Places bonding resin at predetermined locations | Creates flexible links between adjacent subunits |
| UV curing, cooling, and take-up unit | Handles UV curing, cooling, inspection, and final winding | Helps protect bond quality and organized fiber placement |
Ribbon Take-Up, Cooling, And UV Curing Equipment
UV energy cures the subunit coating and intermittent bonds while the resin is wet. This wet-on-wet process forms a cohesive interface between materials, influencing bond strength.
Cooling systems reduce ribbon temperature before inspection and winding. The fiber ribbon line may also employ vision checks to monitor width, bond position, and surface quality.
The take-up system winds the finished ribbon with low, even tension. Proper winding preserves the finished bonded structure, ensuring the custom ribbon cable is ready for later cabling, splicing, or connector assembly.
Fiber Preparation, Alignment, And Color Control
The foundation of a stable ribbon cable with fiber preparation. Each strand must enter the assembly clean, centered, and in the correct sequence before the coating and bonding processes commence.
Managing Fiber Identification For Splicing And Maintenance
A clearly defined fiber color sequence is indispensable for splicing, testing, and maintenance operations. The standard 12-fiber sequence, typically consisting of blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, and aqua, facilitates swift identification.
For higher fiber counts, the sequence may be repeated within controlled subunits. This method ensures that each ribbon cable remains organized within splice trays, closures, and cable connector layouts.
| Fiber Number | Standard Color | Production Purpose |
|---|---|---|
| 01 | Standard blue | Begins the recognized fiber color sequence |
| 2 | Orange | Allows quick identification during handling |
| 03 | Standard green | Maintains the specified planar order |
| 04 | Brown | Assists with verifying fiber and subunit placement |
| 5 | Slate | Creates a clear mid-sequence identifier |
| 6 | Standard white | Provides strong visual contrast for inspection |
| 7 | Red | Supports accurate splicing records |
| 8 | Black | Helps technicians recognize sequence position in trays |
| 9 | Yellow | Assists field restoration activities |
| 10 | Violet | Clearly identifies fibers near the end of the sequence |
| 11 | Standard rose | Assists identification in high-count ribbon systems |
| Position 12 | Aqua | Marks the final position in the standard color order |
Preventing Fiber Twisting And Uneven Tension
Fiber guides and payoff units are important in maintaining fibers in a flat, side-by-side configuration. This prevents twist, crossing, and gaps that could alter the ribbon’s width or distort the bond pattern.
Production personnel carefully check tension across every path before the fibers reach the coating die. Proper alignment is critical for mass fusion splicing and ensures the finished ribbon cable fits its intended cable connector system.
Intermittent Bond Application And UV Curing Process
The intermittent bonding process joins fiber subunits without solidifying the ribbon into a rigid form. This method allows dense routing and ensures dependable handling within a flexible flat cable. It also aids in maintaining the planned fiber layout during subsequent cable assembly.
Applying Intermittent Bonds At Predetermined Intervals
Equipment applies bonds at intervals ranging from 10 mm to 1,000 mm. The bond locations may stagger along the ribbon’s length. This arrangement provides support to adjacent subunits while allowing sufficient free length for movement.
A controlled applicator deposits a measured amount of UV-curable resin at each bond point. Bonds often exhibit a diamond-like shape, with wider centers and narrower ends. The tapered ends help minimize localized stress changes when the cable bends or twists.
Creating Flexible And Strong Bond Interfaces
Wet-on-wet processing requires applying a second material before the first subunit coating cures. The uncured layers can blend before undergoing a shared UV curing step. This approach fosters a gradual interface, unlike a sharp material boundary.
This gradual interface influences various properties, including color, Young’s modulus, and surface friction. Bond ends may feature saddle-like surfaces with both convex and concave curves. These features help the bond resist peeling while facilitating separation when required.
Controlling Curing Performance
UV lamps must provide consistent energy across the ribbon. Factors such as line speed, lamp output, resin volume, and exposure time impact the bond’s quality. Selecting the right UV-curable resin ensures rapid curing without compromising the fiber coating.
Process personnel carefully track bond shape, cure level, and ribbon flexibility during production. The cured cable should transition smoothly from a flat plane to various forms without bond damage. Controlled curing ensures consistent handling throughout winding and downstream processing.
Quality Control For Fiber Ribbon And Flexible Flat Cable Output
Verifying every flat ribbon cable is a meticulous process. It involves checking the cable’s flexibility and its readiness for subsequent splicing operations. During production, operators assess the fiber count, color sequence, and precise positioning of each fiber. They also evaluate the cable’s winding condition, ensuring its optimal state for assembly.
Regular inspections are critical in identifying any defects in the coating, uneven tension, or misplaced bonds. These issues, if left unaddressed, could compromise the cable’s performance in subsequent stages of production.
Checking Bond Spacing, Ribbon Width, And Thickness
The spacing between bonds is a critical parameter, requiring adherence to a specific design range. This spacing is essential for the cable’s flexibility, ensuring that the fibers remain aligned within their designated subunits during bending.
Quality checks are performed to confirm that each bond correctly connects adjacent subunits. This attention to detail ensures that the ribbon lays flat, facilitating smooth mass fusion splicing processes.
| Inspection Area | Items Checked | Process Value |
|---|---|---|
| Fiber identity | Fiber number, color order, and placement | Supports reliable splice records and maintenance activities |
| Intermittent bond arrangement | Bond location, spacing, and subunit connection | Preserves flexibility while maintaining fiber order |
| Finished ribbon profile | Ribbon width, thickness, and planar condition | Helps the ribbon fit handling and splicing tools |
| Finished surface quality | UV cure state, coating coverage, and defects | Helps minimize handling damage during winding |
Mechanical And Optical Performance Testing
Mechanical testing focuses on bond separation, cohesive strength, elongation, and handling behavior. These evaluations are essential to confirm that the manufacturing process controls are consistent across similar designs of flat cables.
Optical testing encompasses evaluations after bonding and curing. It ensures that the core, cladding, primary coating, secondary coating, and color layer are adequately protected throughout the manufacturing process.
Attenuation measurements and splice-handling tests are integral to routine inspections. The quality of winding is also scrutinized to ensure that the finished flat ribbon cable is in a controlled condition for assembly.
Production Efficiency, Automation, And Precision Winding
High-efficiency ribbon production relies on a unified production line. Each stage, from fiber payoff to inspection and take-up, must harmonize seamlessly. This synchronization ensures the preservation of fiber geometry and facilitates consistent output, critical for high-speed data transmission cables.
Production Line Synchronization And Process Data Monitoring
Automated control systems synchronize payoff speed, fiber tension, resin delivery, bond placement, UV curing, cooling, and take-up. Adjustments are made in real time to maintain ribbon stability when speed variations occur at any station.
Manufacturing data records capture fiber color sequences, bond intervals, cure settings, ribbon dimensions, and winding status. This detailed history allows operators to track the production of each custom ribbon cable.
- Controlled payoff tension reduces fiber stretching and slack.
- Controlled bond timing maintains regular intervals between bond points.
- Regular dimensional checks reveal ribbon width or thickness deviations early.
- Winding records support lot traceability and downstream handling.
Preparing Wound Ribbon For Downstream Cable Manufacturing
A cable precision winder ensures the ribbon is wound onto a spool with uniform tension and controlled movement. This method prevents edge crushing, layer crossing, and sudden pulls during subsequent cable processing.
Finished ribbon units can be stacked, rolled, or loaded into central tube and loose tube designs. These configurations enable the creation of high-speed data transmission cables, even in areas where duct additions are impractical.
When producing custom ribbon cable, the winding pattern must align with subsequent processes. Proper spool buildup is essential for smooth payout during stranding, tube loading, and cable assembly.
| Monitored Area | Control Focus | Downstream Process Benefit |
|---|---|---|
| Optical fiber payoff | Stable tension and correct color sequence | Orderly ribbon placement during cable assembly |
| Bonding stage | Stable spacing with repeatable resin deposition | Predictable ribbon flexibility during handling |
| UV curing | Controlled lamp output and exposure time | Properly cured bonds before ribbon winding |
| Cable precision winder | Even traverse, spool tension, and layer control | Smooth payout for central tube or loose tube loading |
Ribbon Cable Applications, Fusion Splicing, And Connector Planning
Ribbon fiber is instrumental in dense links within data centers, telecom backbones, metro rings, and FTTx feeder routes. It also excels in indoor FTTH runs, 5G fronthaul, and outdoor point-to-point networks where space is at a premium.
A properly planned ribbon cable system enables crews to manage high fiber counts efficiently, without increasing bulk. Each high-speed data transmission cable must align with the site’s route, enclosure space, and future expansion plans.
Advantages Of Mass Fusion Splicing
A ribbon fusion splicer allows the joining of an entire ribbon in a single operation. For a 12-fiber ribbon, a matching cleaver can prepare all 12 fibers simultaneously before the automated fusion process commences.
This method reduces handling time and ensures consistent fiber alignment. Splice loss is reported to remain below 0.05 to 0.10 dB per fiber, contingent upon controlled preparation, cleaning, and machine settings.
In contrast, loose tube cable necessitates a different strategy at the splice cassette. Technicians must separate the fibers, then splice them individually, which prolongs the ribbon cable assembly process.
Connection Planning For Dense Links
High-density fiber links often employ MPO or MTP trunks, harnesses, fanout cables, and cassette modules. The chosen cable connector must align with the fiber count, polarity method, connector gender, and fiber type.
Planning also considers transceiver requirements and the full link loss budget. A high-speed data transmission cable, when used with parallel optics, demands a clear polarity path from equipment port to patch panel.
| Network Planning Item | What It Determines | Common Application |
|---|---|---|
| Fiber ribbon count | Fusion splice capacity and cassette choice | 12-fiber and 24-fiber network backbones |
| MPO or MTP multi-fiber connector | Polarity management and equipment port compatibility | High-density data center and 5G equipment-room connections |
| Multi-fiber harness or fanout assembly | Breakout from multi-fiber to single-fiber ports | Switch ports and high-density patching areas |
| Network loss budget | Allowed loss from splices, connectors, and fiber length | High-speed data transmission cable routes |
Shanghai Weiye OFC Equipment For Fiber Ribbon Production Lines
Shanghai Weiye OFC Equipment, commonly referred to as SHWY, specializes in machinery for the production of optical fibers and cables, serving markets in the United States and globally. Its offerings are designed to support consistent manufacturing, facilitate clear operator control, and enable seamless integration into production lines.
For manufacturers planning an intermittent bonded ribbon production line, SHWY provides equipment for each stage of ribbon handling, curing, and winding with suitable machinery.
SHWY Optical Fiber And Cable Machinery Experience
Founded in 1998, SHWY’s journey in the industry has been marked by significant milestones. By 2012, its annual turnover surpassed 200 million CNY, strengthening its position within a prominent Chinese fiber and cable conglomerate as a joint venture.
In 2020, SHWY transitioned to independence, relocating to a state-of-the-art facility in central Shanghai. This move underscored its commitment to advancing equipment research, manufacturing, and process application while supporting operational stability.
Relevant SHWY Production Equipment Portfolio
SHWY offers a diverse range of equipment, including fiber draw towers, coloring machines, secondary coating lines, SZ stranding equipment, and cable sheathing lines. Notably, it also features a fiber ribbon line tailored for flat, high-count fiber formats.
For ribbon projects, a cable precision winder plays a critical role in maintaining orderly package buildup and controlled tension. This ensures safer transport and more consistent feeding into subsequent cable production stages.
The broader SHWY portfolio also includes FTTH lines, indoor cable equipment, and OPGW fiber-in-stainless-steel-tube systems. These options enable manufacturers to integrate an intermittent bonded ribbon production line with complementary cable processes.
Final Thoughts
An intermittently bonded ribbon production line combines fiber alignment, controlled bonding, UV curing, inspection, and precision winding into a unified process. Each step maintains organized fiber positioning while maintaining the necessary bendability for dense cable designs. This combination is critical for the creation of high-density optical networks.
The resultant ribbon cable supports efficient mass fusion splicing and organized fiber management. It is ideal for applications with high fiber counts, confined ducts, limited tray space, and frequent splice points. This makes it a cornerstone in many high-density ribbon cable routes.
Effective project planning extends beyond the production line. It encompasses the cable structure, closure capacity, fusion tools, test methodologies, labeling, and restoration records. These elements must align with the planned network architecture for seamless integration.
